دستگاه شلنگ چین دار دستی
Created with Pixso.

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications

نام تجاری: FY
شماره مدل: FY-51CSD
مقدار تولیدی: 1 مجموعه
قیمت: USD$ 1300
شرایط پرداخت: L/C، D/A، D/P، T/T، مانی گرام، وسترن یونیون
توانایی عرضه: 300 ست در ماه
اطلاعات دقیق
محل منبع:
شانگهای، چین
گواهی:
CE
وزن:
200 کیلوگرم
وضعیت:
جدید
ابعاد (l*w*h):
550*670*555 میلی متر
گارانتی:
1 سال
خدمات پس از فروش ارائه شده است:
پشتیبانی فنی ویدیویی، پشتیبانی آنلاین
قدرت (w):
0 کیلووات
ولتاژ:
0 ولت
نیروی چین دار:
600T
رنگ:
آبی یا سفارشی
محدوده چین دار:
1/4" به 2''، 1/4''-2''
نام محصول:
دستگاه پیچش دستی شلنگ 600T رنگ آبی 2 اینچی با راندمان بالا با محدوده چین خوردگی 6-51 میلی متر و 10 ق
برنامه:
شیلنگ
می میرد رایگان:
10 مجموعه
فشار نامی:
70 مگاپاسکال
کلمات کلیدی:
دستگاه چین و چروک دستی، دستگاه بستن شلنگ هیدرولیک
جزئیات بسته بندی:
جعبه چوبی استاندارد صادرات
قابلیت ارائه:
300 ست در ماه
برجسته کردن:

600T Crimping Force Hose Crimper,6-51mm Crimping Range Manual Hose Crimping Machine,10 Interchangeable Dies Hydraulic Hose Crimping Machine

,

6-51mm Crimping Range Manual Hose Crimping Machine

,

10 Interchangeable Dies Hydraulic Hose Crimping Machine

توضیحات محصول
2 Inch Blue High-Efficiency 600T Manual Hose Crimping Machine
Introduce your workshop to reliable, heavy-duty crimping with the 2 Inch Blue High-Efficiency 600T Manual Hose Crimping Machine. Engineered for hydraulic applications, this robust manual crimper delivers a powerful 600T crimping force and covers a wide hose range from 6mm to 51mm (up to 2 inches).
Product Features & Characteristics
  • 600T High Crimping Force: Ensures consistent, secure crimps for high-pressure hydraulic hoses and fittings
  • Wide Crimping Range: Supports hose sizes from 6mm to 51mm (up to 2 inches) for broad shop compatibility
  • Manual Operation: Reliable mechanical system that requires no electricity—ideal for mobile shops or locations with limited power
  • 10 Interchangeable Dies: Includes ten standard dies for fast changeover between common hose sizes and fittings
  • Sturdy Blue Finish: Durable paint and heavy-gauge steel construction resist workshop wear and provide a professional appearance
  • Compact Footprint & Stable Base: Designed to save floor space while maintaining stability during heavy crimping cycles
  • Simple Controls & Ergonomics: Intuitive manual levers and clear die seating reduce operator fatigue and speed up workflow
Key Advantages
  • Cost-Effective and Energy-Free: Manual operation eliminates electrical costs and reduces maintenance complexity
  • High Reliability: Fewer electronic components mean lower failure rates and long service life in demanding service environments
  • Versatile Application: Suitable for hydraulic systems, automotive hose assemblies, oil and industrial hose production and repair
  • Fast Die Changes: Ten interchangeable dies enable quick turnaround on varied jobs, improving workshop throughput
  • Portability and Flexibility: Compact manual design makes it easier to move or install where needed compared with large electric units
Technical Specifications
Model FY-51CSD Manual Crimper
Crimping Range 6-51mm (1/4"-2" inner diameter)
Crimping Force 600 Tons
Maximum Open Diameter 114mm
Die Sets 10 sets
System Pressure 70 MPa
Accuracy 0.01mm
Work Efficiency 10 pieces/hour
Dimensions 550mm * 670mm * 555mm
Weight 200kg
Additional Features
  • Small size and light weight for easy transportation
  • World-famous hydraulic pump system
  • High accuracy and precision crimping
  • High efficiency with Finn Power Dial control
  • Stable performance even after years of service

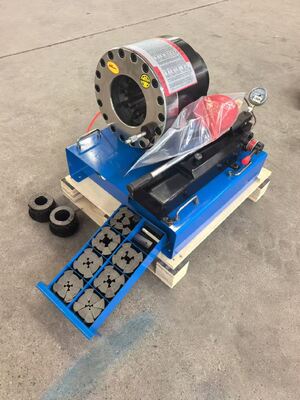

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 0

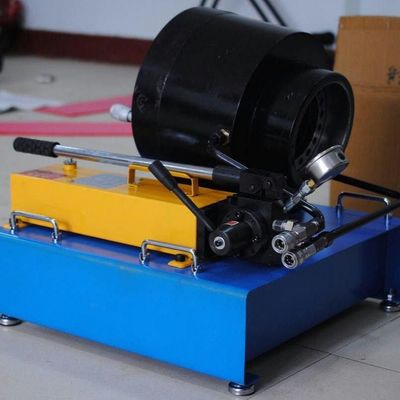

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 1

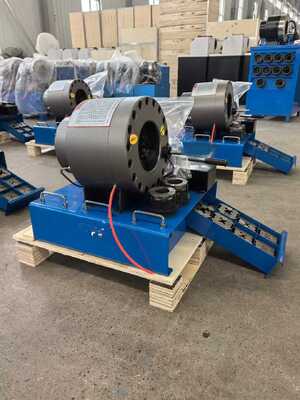

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 2

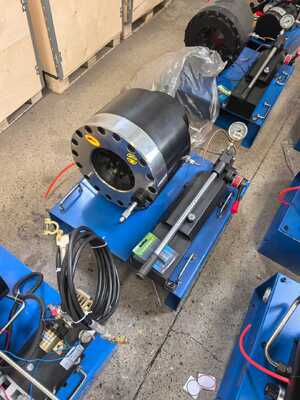

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 3

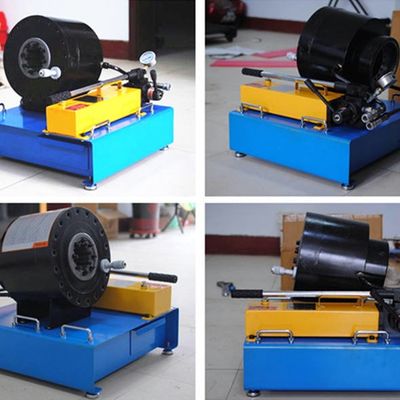

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 4

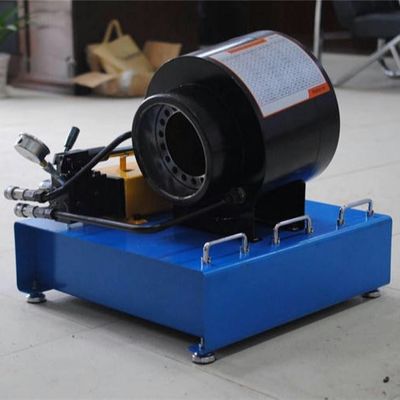

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 5
Machine Features
Crimping Dial
High accuracy and stability with long service life

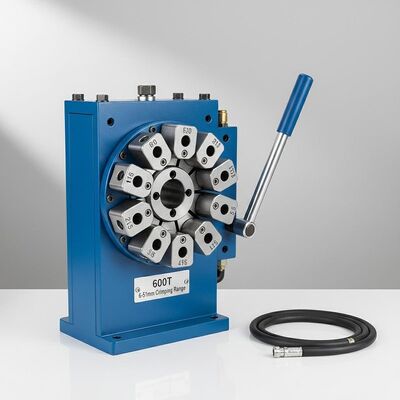

600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 6
Compact Design
FY-51CSD weighs only 200kg with compact dimensions for easy transportation to any location
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 7
Quick Die Sets Installation
FY-51CSD enables rapid die set changes and installation to save time and improve productivity
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 8
Customization Options
Different machine colors or company LOGO can be customized according to customer requirements
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 9
Application Fields
The portable FY-51CSD crimping machine offers flexible hose crimping capabilities for on-site applications without power supplies. With different die sets, it can perform various tasks including hydraulic hose assembly up to 2 inches, connecting steel tubes, pressing wires and cables, and more.
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 10
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 11
600T Crimping Force Manual Hose Crimping Machine with 6-51mm Range and 10 Interchangeable Dies for Hydraulic Applications 12
Frequently Asked Questions
What maximum hose size can this machine crimp?
The machine crimps hoses up to 2 inches (51mm) in diameter.
Is electricity required to operate the crimper?
No—this is a manual crimping machine designed to work without electrical power.
How many dies are supplied and can I get additional dies?
Ten interchangeable dies are included. Additional dies are available to match specific fittings or non-standard hose sizes—contact the supplier for options.
Is this machine suitable for high-pressure hydraulic hoses?
Yes. With a 600T crimping force, it is designed to produce secure crimps for high-pressure hydraulic hose assemblies when used with correct dies and fittings.
What maintenance is required?
Routine checks include lubricating moving parts, inspecting dies for wear, and tightening fasteners. The manual design simplifies maintenance compared to electric systems.
Operation Video
Related Products
Note: Non-standard die sets are available with "*" designation. Customized die sets can be provided. Maximum opening refers to the stroke between fully closed and fully opened die sets.
