3 Inch Electric 220v/380v Hydraulic Hose Crimping Machine With 2800KN Crimping Force PLC/botton Control System And 6-76mm Crimping Range

3 Inch Electric Hydraulic Hose Crimping Machine — 2800 kN PLC Control

Introducing the high-performance 3 Inch Electric Hydraulic Hose Crimping Machine, engineered for precision, durability and high throughput. Designed for professional hose assembly and repair in hydraulic workshops, car repair shops and oil-service operations across the USA, Europe and Southeast Asia, this crimper delivers a powerful 2800 kN crimping force and a wide 6–76 mm (up to 3 inch) crimping range. The PLC / button control system ensures repeatable results, fast setup and safe operation for demanding production environments.

Product features & characteristics

• Wide Crimping Range: Supports hose sizes from 6 mm to 76 mm (up to 3 inches), covering most hydraulic, industrial and automotive hose assemblies.
• High Crimping Force: Robust 2800 kN (≈280 tons) closing force guarantees reliable crimps for heavy-duty hoses and large fittings.
• PLC / Button Control System: Intuitive PLC interface with push-button controls, digital display and programmable presets for repeatable, operator-friendly workflows.
• Electric-Hydraulic Drive: Stable, smooth hydraulic power driven by a reliable electric motor for consistent crimp pressure and reduced cycle time.
• Durable Frame & Tooling: Heavy-gauge welded steel frame and precision-machined crimping head minimize vibration and extend tool life.
• Safety & Diagnostics: Emergency stop, safety interlocks and PLC fault diagnostics protect operators and simplify maintenance.
• Modular Dies & Accessories: Compatible with standard die sets; optional dies and adapters available for special fittings and hose constructions.

Advantages

• Consistent Quality: PLC presets and the stable hydraulic system produce uniform crimp profiles, lowering leak risk and rework rates.
• High Productivity: Powerful hydraulic drive and programmable cycles increase throughput for production lines and busy repair shops.
• Versatility: Handles a wide range of hose types and sizes — from light hydraulic lines to large industrial hoses up to 3 inches.
• Easy Operation: Simple button controls and stored programs reduce operator variability and speed job changeovers.
• Global Compatibility: Available in 220V or 380V configurations to suit electrical systems in the USA, Europe and Southeast Asia.

Technical specifications (typical)

• Model: 3 Inch Electric Hydraulic Hose Crimping Machine
• Crimping Range: 6 mm – 76 mm (up to 3 in)
• Maximum Crimping Force: 2800 kN (~280 tons)
• Control System: PLC with button control, digital display and program memory
• Power Supply: 220 V / 380 V (specify at order)
• Motor Power: 4 kW (model dependent)
• Repeatability: ±0.01–0.05 mm (model dependent)
• Dies: Standard die set included; optional/custom dies available
• Weight: 1300 kg (model dependent)
• Dimensions (approx.): 840 × 1090 × 1760 mm

Frequently Asked Questions (FAQ)

Q1: What maximum hose size can this machine crimp?
A1: The machine supports hoses up to 76 mm (3 inches) in outer diameter.

Q2: What does 2800 kN mean in practical terms?
A2: 2800 kN (≈280 tons) is the maximum closing force the crimper can apply, suitable for high-pressure and large-diameter hydraulic hose assemblies.

Q3: Is the machine compatible with local power supplies?
A3: Yes — it’s available in 220 V or 380 V configurations. Please confirm your local voltage when ordering.

Q4: Can I store different crimp programs?
A4: Yes — the PLC system stores multiple presets (crimp diameter, pressure and dwell time) for quick job changeovers.

Q5: Are custom dies available?
A5: Yes — additional and custom dies for specific fittings and non-standard hoses can be supplied on request.

SEO keywords to include: Hydraulic Hose Crimping Machine, Hose Crimper, 3 Inch Hose Crimper, PLC Hose Crimper, 2800 kN crimper.

Conclusion
This 3 Inch Electric Hydraulic Hose Crimping Machine combines high force, wide range and automated PLC control to deliver dependable, production-grade crimping for workshops and manufacturers in the USA, Europe and Southeast Asia. Contact your supplier for configuration options, die sets and voltage choices to optimize the machine for your workflow.

• What sizes of hoses can this machine crimp?
  The hydraulic hose crimping machine is designed to accommodate hoses ranging from 6mm to 76mm in diameter.
• How many dies are included with this machine?
  It comes with 15 interchangeable dies, allowing for versatility in crimping various hose sizes and types.
• What types of control systems does the machine offer?
  The machine features different control options, allowing users to select the most suitable system for their specific crimping requirements.
• Is the machine durable for continuous use?
  Yes, it is constructed from high-quality materials, designed to withstand heavy use in busy workshop environments.
• How does the fast change mould design improve efficiency?
  The fast change mould design allows for quick and easy dies swapping, significantly reducing downtime and boosting overall productivity.

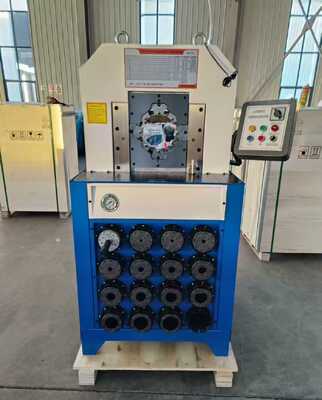

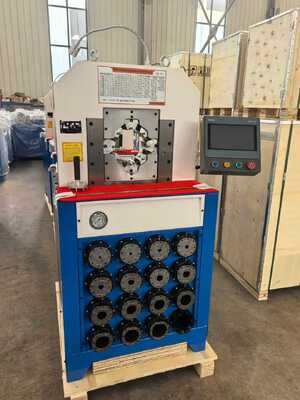

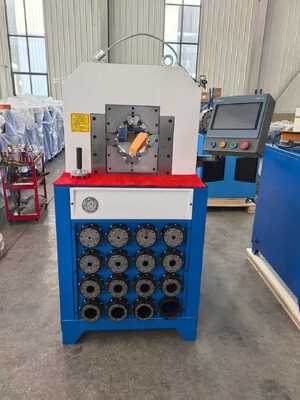

Front view

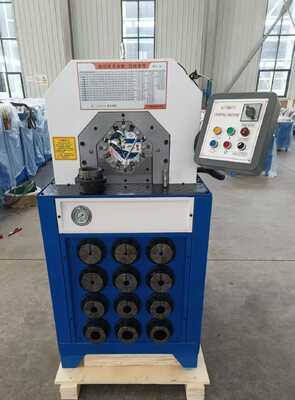

Side view

Control panel

Die set

In operation

Crimping demonstration

Component details

FY-CBY-51B Model

Specifications

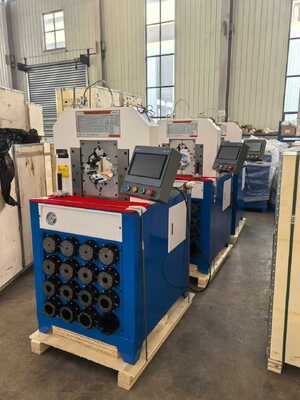

Workshop environment

Close-up view

Operator using machine

The 3 Inch 6-76mm Hydraulic Hose Crimping Machine is a high-performance solution tailored for businesses focused on hydraulic applications. With its wide crimping range, multiple control system options, and fast change mould design, this machine enhances efficiency and productivity in hydraulic repairs and services. Invest in this reliable hydraulic hose crimping machine to elevate your operations and achieve outstanding results in hose management!
