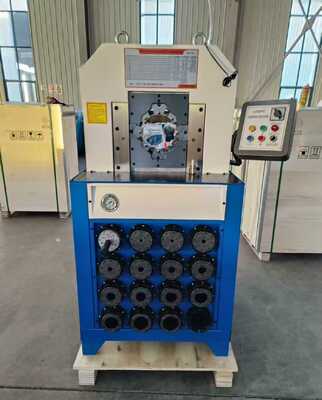

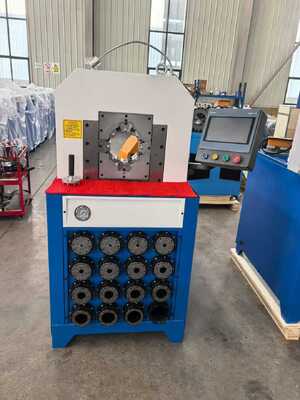

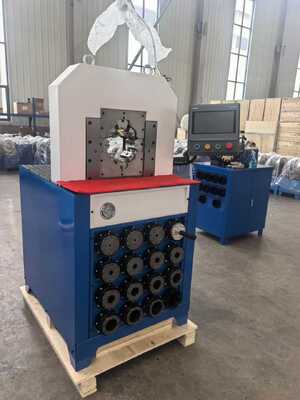

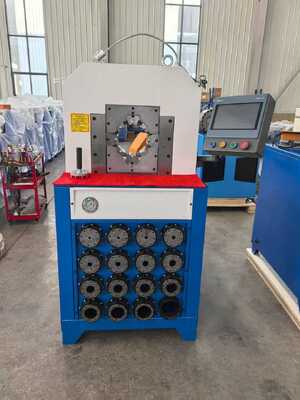

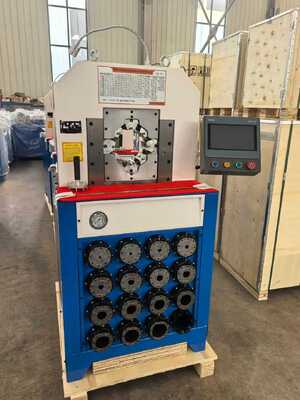

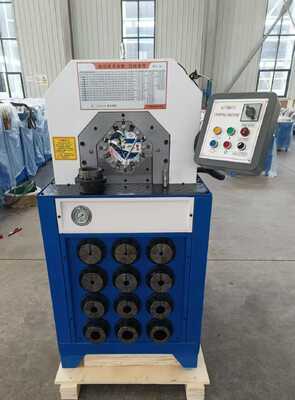

PLC Control System 5.5kw/7.5kw Hydraulic Hose Crimping Machine with 300 Pieces/H Efficiency and Fast Change Moulds

PLC Control System 5.5kw/7.5kw Hydraulic Hose Crimping Machine with 300 Pieces/H Efficiency and Fast Change Moulds

نام تجاری:	FY
شماره مدل:	FY-CBK-51B
مقدار تولیدی:	1 مجموعه
قیمت:	5000
شرایط پرداخت:	L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام
توانایی عرضه:	300 ست در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

شانگهای، چین

گواهی:

850 کیلوگرم

جزئیات بسته بندی:

جعبه چوبی استاندارد صادرات

قابلیت ارائه:

300 ست در ماه

برجسته کردن:

PLC control hydraulic hose crimping machine,5.5kw hose pressing machine with fast change moulds,7.5kw hydraulic crimper with 300 pieces/h efficiency

5.5kw hose pressing machine with fast change moulds

7.5kw hydraulic crimper with 300 pieces/h efficiency

توضیحات محصول

2 Inch 6-51mm PLC Control System 5.5kw/7.5kw 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Crimping Machine

BIG ELBOW FITTINGS CBK-51B FLEXIBLE HOSE CRIMPER MACHINE

FY-CBK-51B DESCRIPTION

This 2-inch hydraulic hose crimping machine features a button control system for easy operation and is available in 5.5 kW or 7.5 kW configurations. Capable of crimping up to 300 pieces per hour, it is specifically designed for 2-inch hoses.

Key Features

Fast Change Moulds: Equipped with quick-change moulds for swift switching between different crimping dies, minimizing downtime and enhancing productivity
Robust Hydraulic System: Powerful hydraulic system ensures strong and consistent crimping performance for secure and durable connections
User-Friendly Design: Button control system simplifies operation for operators of varying skill levels

Operation Precautions

When using the tube press for the first time, perform 20-30 crimping cycles without load and observe that all parts are normal before use
In winter, perform 20-30 cycles without load to increase oil temperature
Press the open button, select corresponding mold according to hose specifications, and adjust micrometer scale
Place hose with joint in proper position for full-length crimping
Press crimping button to execute operation until automatic mold opening
Use vernier caliper to check crimped joint jacket outer diameter and adjust micrometer scale as needed

The FY-CBK-51B hose pressing machine is renowned for its intelligent control system and large opening mouth. With super crimping force, it can crimp hydraulic hose R15 R13 up to 2 inch.

Main Features

Thin head for easy feeding of bend fittings
Big crimping power
High accuracy

Specification	Value
Crimping Range/Skiving Range	6-51mm (1/4"-2" inner diameter of hose)
Quantity of Dies	13 sets
Item Dies (Length/No.)	60mm (15,19,23,26), 70mm (31,36,41), 80mm (47,55,60)
Accuracy	0.01mm
Output Volume of Pump	10L
System Pressure	31.5Mpa
Motor Power	4kw
Voltage	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	1000T
Work Efficiency	300pcs/h
Maximum Open Diameter	145mm
Max Open Tolerance	±50mm
Package Dimension	7008801500mm
Machine Dimension	6408201400mm
Net Weight	850kg
Gross Weight	880kg

Technical Data

Parameter	Specification
Model	FY-CBY-51B Hose Pressing Machine
Crimping Range	6-51mm (1/4~2")
Crimping Force	1000T
Hose Size	1/4-2 inch
Max. Opening	145mm
Die Sets	13
Work Efficiency	300pcs/h
System Pressure	31.5Mpa
Accuracy	0.01mm
Control	PLC
Standard Voltage	110V/220V/380V/415V 50/60Hz
Motor Power	4KW
Length	640mm
Width	820mm
Height	1400mm
Weight	850KG
