3 Inch Super Thickness Model PLC Control Hydraulic Hose Crimping Machine With 6-76mm Crimping Range Black Color Bigger Pressure Force And 165mm Max Opening 15 Dies

3 Inch Super Thickness Model PLC Control Hydraulic Hose Crimping Machine With 6-76mm Crimping Range Black Color Bigger Pressure Force And 165mm Max Opening 15 Dies

نام تجاری:	FY
شماره مدل:	FY-CBK120
مقدار تولیدی:	1 مجموعه
قیمت:	USD$ 5850
شرایط پرداخت:	L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام
توانایی عرضه:	10000 مجموعه در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

گواهی:

محدوده چین دار:

۶-۷۶ میلی متر

حداکثر باز شدن:

165 میلی متر

فشار سیستم:

31.5 مگاپاسکال

قدرت موتور:

5.5kw/7.5kw

نیروی چین دار:

1500 تن

بازده کاری:

300 عدد در ساعت

نام محصول:

3 اینچ ضخامت فوق العاده مدل PLC کنترل دستگاه چین دار شلنگ هیدرولیک با محدوده چین دار 6-76 میلی متر م

جزئیات بسته بندی:

جعبه چوبی استاندارد

قابلیت ارائه:

10000 مجموعه در ماه

برجسته کردن:

3 inch PLC hydraulic hose crimper

6-76mm crimping range hose machine

165mm opening hydraulic crimping machine

توضیحات محصول

3 Inch Super Thickness Model PLC Control Hydraulic Hose Crimping Machine With 6-76mm Crimping Range Black Color Bigger Pressure Force And 165mm Max Opening 15 Dies

Product Overview

3 Inch Super Thickness Model PLC Control Hydraulic Hose Crimping Machine: Unrivaled Power, Precision, and Capacity

Master Heavy-Duty Hydraulic Assemblies with Advanced Intelligence

Introducing our 3 Inch Super Thickness Model PLC Control Hydraulic Hose Crimping Machine, a robust and intelligent solution engineered for the most demanding industrial applications. This state-of-the-art hydraulic hose crimping machine is the definitive choice for large-scale hydraulic and car repair shops, as well as the critical oil and hose industries across the USA, Europe, and Southeast Asia. Featuring an advanced PLC control system, an expansive 6-76mm crimping range, a formidable pressure force, and an impressive 165mm maximum opening, this black-colored powerhouse delivers unparalleled strength, precision, and efficiency for creating flawless, high-integrity hose assemblies.

Key Features and Advantages: Engineered for Peak Performance

Our 3 Inch Super Thickness Model PLC Control Hydraulic Hose Crimping Machine is meticulously designed with cutting-edge features that ensure superior results and operational excellence:

•Expansive 6-76mm (3 Inch) Crimping Range: This machine offers an exceptionally wide crimping range, accommodating hoses from 6mm up to 76mm (approximately 3 inches). This versatility makes it ideal for a vast array of hydraulic hose sizes, from standard industrial lines to specialized large-diameter hoses, providing a comprehensive solution for diverse needs.

•Advanced PLC Control System: Experience ultimate precision and repeatability with our intuitive Programmable Logic Controller (PLC) system. The PLC enables precise setting and monitoring of crimping parameters, ensuring consistent, accurate crimps and minimizing human error. Its intelligent interface enhances operational efficiency, data management, and diagnostic capabilities.

•Bigger Pressure Force: Engineered for heavy-duty tasks, this machine delivers a significantly larger pressure force, allowing it to effortlessly handle the thickest and most rigid hydraulic hoses, including multi-spiral and armored hoses. This superior force is critical for ensuring secure, leak-proof connections in high-pressure industrial applications.

•Generous 165mm Maximum Opening: The impressive 165mm maximum opening provides ample space for crimping large fittings and complex hose assemblies, enhancing operational flexibility and reducing limitations on the types of components that can be processed.

•15 High-Precision Interchangeable Dies: Equipped with 15 sets of high-quality, interchangeable dies, this heavy-duty hydraulic crimper offers exceptional adaptability. These precision-engineered dies allow for quick and accurate adaptation to various hose diameters and fitting configurations, significantly reducing setup times and maximizing operational uptime.

•Super Thickness Model Design: Built with a reinforced, super-thickness frame and robust components, this machine is designed for extreme durability and stability. It withstands continuous, heavy-duty operation, ensuring a long service life and consistent performance in the most challenging industrial environments.

•Sleek Black Color: The machine's professional black finish not only adds a modern aesthetic to your workshop but also signifies its high-performance capabilities and robust construction.

•Multi-Voltage Compatibility (220V/380V): Engineered for global markets, our industrial hose assembly machine supports both 220V and 380V electrical voltages. This adaptability ensures seamless integration into diverse power infrastructures across the USA, Europe, and Southeast Asia.

Why Our Super Thickness PLC Hydraulic Hose Crimper is the Smart Choice

Investing in our 3 Inch Super Thickness Model PLC Control Hydraulic Hose Crimping Machine means choosing a future of enhanced productivity, reliability, and cost-effectiveness for your heavy-duty operations:

•Unmatched Performance: The combination of massive pressure force, wide crimping range, and large opening makes it ideal for the most demanding hydraulic hose assemblies.

•Precision and Consistency: The PLC control system guarantees exact crimp diameters and repeatable results, leading to superior hose assembly quality and significantly reduced risk of leaks.

•Operational Efficiency: Quick die changes, intelligent control, and a generous opening streamline your workflow, significantly boosting throughput and profitability.

•Durability and Longevity: The super thickness design ensures exceptional robustness, minimizing downtime and extending the machine's operational life.

•Global Industry Standard: Designed to meet the stringent requirements of professionals in the USA, Europe, and Southeast Asia, ensuring broad applicability and market relevance.

Key Features

6-76 mm Crimping Range

Handles common hydraulic hose sizes for automotive repair, industrial hydraulics and oil-field maintenance.

165 mm Max Opening

Provides convenient working space for loading fittings and larger assemblies, reducing handling time.

PLC Control System

Programmable logic control supports consistent cycle operation and repeatability between operators.

Button + PLC Interface

Combines easy push-button operation with PLC stability for both experienced technicians and routine shop usage.

Technical Specifications

Specification	Details
Crimping Range	6-76 mm (1/4~3")
Quantity of Dies	15 sets
Accuracy	0.01 mm
System Pressure	31.5 mpa
Motor Power	5.5kw/7.5Kw
Voltage	110V/220V/380V/415V 50/60Hz (optional)
Crimping Force	1500 t
Work Efficiency	300 pcs/h
Maximum Open Diameter	165 mm
Machine Dimension	10008001630 mm
Net Weight	1250 kg

Control System Specifications

Specification	Details
Control System	PLC/BUTTON/DIGITAL PANEL
Model	AC Hose Crimping Machine
Crimping Speed	10-15s/time
Crimping Type	One-time Crimping
Output Volume of Pump	10L/16L

Applications

FY Hose Crimping Machine, Model Number FY-CBK120, is a perfect solution for crimping 3 inch hoses from 6-76mm in diameter. It features one-time crimping technology and is widely used for various applications including crimping air, water, fuel, and oil lines, as well as hydraulic hoses that require high pressure to work properly. It is ideal for automotive, industrial, and commercial applications.

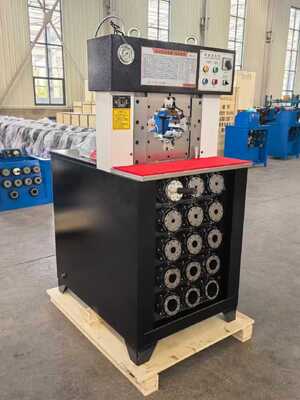

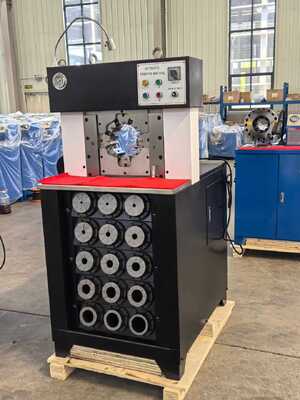

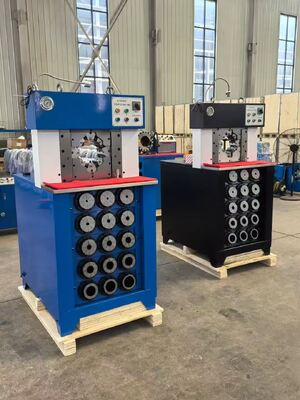

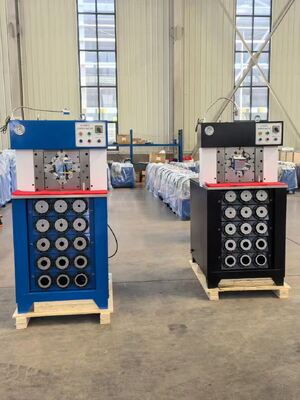

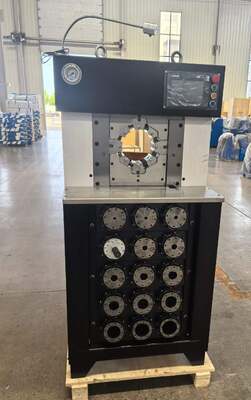

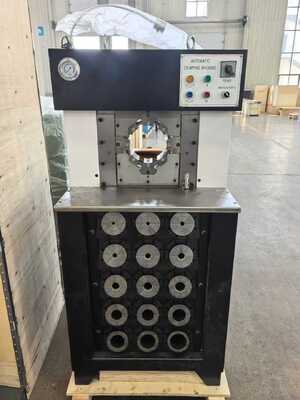

Product Images

Frequently Asked Questions

What maximum hose size can this machine crimp?

The machine supports hose diameters up to 76 mm (3 inches).

What is the benefit of a 165 mm maximum opening?

The 165 mm opening simplifies loading of larger fittings and assemblies, reducing setup time for bulky jobs.

How many dies come with the crimper and can I order more?

The unit includes 15 interchangeable dies. Additional or custom dies are available from the supplier for special fittings or non-standard hose sizes.

Is the control system easy to use for new operators?

Yes - the button-control panel is designed for straightforward operation with minimal training required.

Which voltage should I choose for my region?

The machine is available in 220 V and 380 V configurations. Specify your local supply when ordering to ensure compatibility.

Additional Product Information

Brand Name: FY
Model Number: FY-CBK120
Origin: China
Construction Material: Durable metal
Installation Time: Approximately 2 hours

Support and Services

Our AC Hose Crimping Machine comes with technical support and service for your convenience. Our experts are available to help you with any questions or issues you may have. We provide comprehensive training sessions on product use, along with step-by-step instructions. We also offer a wide range of spare parts and accessories including crimping heads, hose cutters, and more.

Packing and Shipping

The AC Hose Crimping Machine is securely packaged in a wooden box with additional styrofoam cushioning to prevent damage during shipping. All packages are tracked until delivery to ensure safe arrival.

Ready to Enhance Your Operations?

This 3 Inch button-control Blue Hydraulic Hose Crimping Machine combines flexibility, durability and operator-friendly controls to meet the needs of hydraulic shops, car repair centers and oil-service operations. Contact your local distributor to configure voltage, die sets and delivery options!
